Common DB Board Problems and Prevention
The distribution board (DB) is the part of a property most people ignore until the lights go out. It takes the incoming supply and splits it into circuits, each protected by a breaker. When it develops a fault, the effects range from a nuisance trip to overheating inside the box. This guide covers the seven most common DB board problems, which ones need a professional straight away, what DB board repair usually involves, and how to prevent most faults. Some checks are safe to do from the outside, but the cover should only come off in the hands of a qualified electrician.
What a DB board does, and why it wears

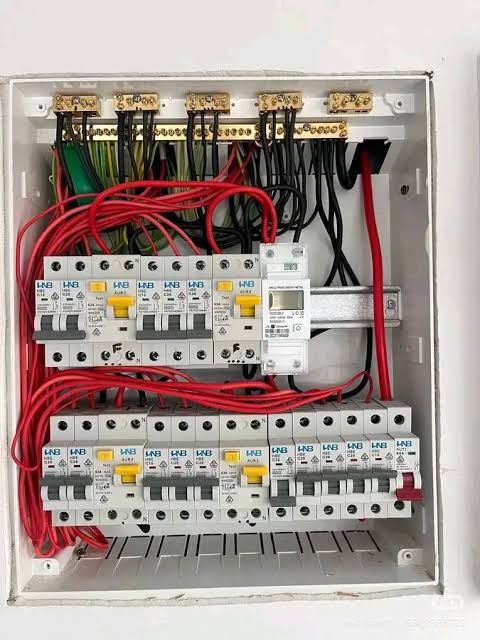

Inside the board you'll typically find a main switch, miniature circuit breakers (MCBs) that cut power on overload or a short circuit, and a residual current device (RCCB) that cuts power when current leaks to earth, which protects people from shocks. Busbars and terminals connect it all together.
In the UAE, boards work under tougher conditions than many people realise. AC units run for most of the year, heat builds up inside enclosures, and humidity can reach boards on balconies, in pump rooms or outside walls. Over time, those conditions loosen connections and wear out components.
7 Common DB Board Problems
1. Breakers that trip repeatedly
An occasional trip is the board doing its job. Repeated tripping on the same circuit usually means overload, a short circuit, or a faulty appliance. A water heater or AC unit is a frequent culprit.
The type of breaker that trips is a clue. An MCB trips on overload or short circuit, while an RCCB trips when current leaks to earth, which can come from damp, damaged cables or a failing heating element. Note which one trips and when, and tell your electrician. Resetting it again and again only hides the cause.
2. Loose connections and overheating
Terminals expand and contract as they heat and cool, which can loosen them over the years. A loose connection creates resistance, resistance creates heat, and heat damages insulation and breakers.
Warning signs include a burning smell, discoloured terminals, a warm cover, or a faint buzzing. If you notice any of them, switch off the affected circuit or the main supply, and call an electrician. Don't keep resetting a hot board.
3. An overloaded board
Boards are sized for the loads they were designed around. Extra AC units, a kitchen upgrade, pool equipment or an EV charger can push a board beyond what it handles comfortably. Signs include several circuits tripping at peak times, lights dimming when large appliances start, and extension leads everywhere.
The fix may be new circuits, rebalancing loads, or a larger board. If you're adding significant load, ask for an assessment first, and if AC units are involved, an AC check can rule out a failing unit drawing too much current.
4. Worn or faulty breakers
Breakers wear out. Symptoms include a breaker that won't stay on, trips instantly, feels loose, or runs warm. The opposite problem is worse: a breaker that fails to trip when it should.
You can't judge this by looking. A technician tests breakers and replaces faulty ones, ideally with the same type and rating the circuit was designed for.
5. A missing or failing RCCB
Older boards may have no earth leakage protection at all, and some RCCBs stop working properly with age. Most have a test button, and manufacturers generally recommend pressing it periodically. If it doesn't trip the power, the device needs attention.
Frequent unexplained RCCB trips shouldn't be ignored either. They usually signal a real leak somewhere, such as a damaged cable, a wet fitting or a faulty appliance.
6. Moisture, dust and corrosion
Humidity can cause condensation inside poorly sealed boards, especially outdoors or near wet areas. Corrosion on terminals and busbars follows, and with it, higher resistance, tracking and sometimes short circuits. Dust builds up in the same way and holds moisture.
Look for rust marks, water stains, a damp smell, or a cover that no longer seals. These need prompt attention.
7. Messy wiring, DIY changes and poor labelling
Two wires under one terminal, mismatched breakers, missing labels and unexplained extra cables all make a board harder and riskier to service. Circuits that aren't labelled slow down fault finding and can lead to the wrong circuit being switched off during work.
A neat, labelled board is easier to maintain and safer to work on.
What you can safely check yourself
- Look at the board's cover for rust, water marks, discolouration or a smell of burning
- Check that breakers are labelled and that none are stuck halfway
- Press the RCCB test button as the manufacturer advises
- Make sure the area around the board is clear and dry
- Note which breaker trips, and under what conditions
Don't remove the cover, tighten terminals or swap breakers yourself. The busbars and incoming terminals can be live even when individual breakers are off.
What DB board repair involves
A proper DB board repair starts with testing rather than guessing. Typically, an electrician switches off the supply safely, inspects for heat damage, checks and tightens connections, tests breakers and the RCCB, and checks insulation and earthing. They then replace faulty parts, rebalance loads if needed, and label the circuits.
You should get a clear explanation of what was found and what was done. If the board is badly damaged, outdated or overloaded, replacement may make more sense than repair.
Situation | Likely outcome |
One faulty breaker | Replace the breaker |
Loose or heat-marked terminals | Repair and re-tighten, replace damaged parts |
No RCCB on an older board | Add earth leakage protection or upgrade the board |
Corrosion or water damage | Repair or replace, and fix the source of moisture |
Overloaded after additions | New circuits or a higher-capacity board |
This table is a guide. Test results decide the right action.
When to call a professional straight away
Call an electrician if you notice a burning smell, scorch marks, a hot cover, sparking, buzzing, a breaker that won't reset, repeated RCCB trips, or any water near the board. If there's a strong burning smell or visible sparks, turn off the main supply if it's safe to do so and keep people away from the board.
Faults on the utility side of your meter are a matter for the supply authority, while the board inside your property usually isn't. If you're unsure which side a fault is on, an electrician can tell you.
For homes and offices in Dubai, electrical service covers troubleshooting, repairs and maintenance of circuit boards.
Preventing DB board problems
- Get it inspected regularly. Many electricians recommend at least a yearly check, and before summer is a sensible time, since cooling loads peak then.
- Don't overload circuits. Spread heavy appliances across circuits and avoid chains of extension leads.
- Keep it clean, dry and accessible. Nothing should be stacked in front of the board.
- Ask for changes to be done properly. Extra breakers or circuits should be added by a qualified electrician, with labelling updated.
- Protect outdoor boards. Check seals, covers and drainage regularly.
- Keep records. A note of the date and work done helps future inspections.
If you'd rather have this scheduled, an annual maintenance contract can include regular electrical inspections. For more everyday precautions, see SWEFIX's guide to electrical safety tips for Dubai homes.
Frequently asked questions
Usually overload, a short circuit, an earth leak, or a faulty appliance. A technician can identify which, and whether the breaker itself is the problem.
No. Even with the breaker switched off, parts of the board can be live. Replacement needs a qualified electrician who matches the type and rating correctly.
There's no single rule for every property. Many electricians suggest an annual inspection, and sooner after major works, added loads, or any warning sign.
It simulates a small earth leak to confirm the device trips. If it doesn't, the RCCB needs to be checked or replaced.
Slight warmth under heavy load can be normal, but a hot cover, a burning smell or discolouration isn't. Switch off if it's safe and call an electrician.
It depends on the damage, age and capacity. Individual parts can often be repaired or replaced, but an outdated or overloaded board may need replacing.
